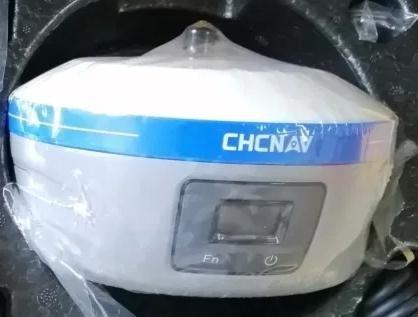

    Chc X1 Base Rtk Super Base Long Working Distance Professional Base with 5W Internal Radio

    Ask Lasest Price
    Brand Name : CHC
    Model Number : X1
    Certification : CE
    Price : 2000/complete set
    Payment Terms : Western Union, T/T, MoneyGram
    Supply Ability : 5000pc per year
    • Product Details
    • Company Profile

    Chc X1 Base Rtk Super Base Long Working Distance Professional Base with 5W Internal Radio

    Chc X1 Base Rtk Super Base Long Working Distance Professional Base with 5W Internal Radio

    Chc X1 Base Rtk Super Base Long Working Distance Professional Base with 5W Internal RadioChc X1 Base Rtk Super Base Long Working Distance Professional Base with 5W Internal Radio


    ProjectContentParameter
    Receiver characteristicssatellite trackingGPS+BDS+Glonass+galileo+QZSS, supporting the third generation of Beidou, achieving 5 stars and 16 frequencies
    number of channels624 channels
    operating systemLinux system
    Initialization time
    Initialization reliability>99.99%
    Receiver appearancebutton1 dynamic/static switch key, 1 power key
    Indicator light1 differential signal light, 1 satellite light
    Display screen1 LCD display
    Nominal accuracyStatic accuracyPlane accuracy: ±(2.5+ 0.5×10-6×D) mm
    Elevation accuracy: ±(5+0.5×10-6×D) mm
    RTK accuracyPlane accuracy: ±(8 + 1×10-6×D) mm
    Elevation accuracy: ±(15+ 1×10-6×D) mm
    Single machine accuracy1.5m
    Code difference accuracyPlane accuracy: ±(0.25+ 1×10-6×D) m
    Elevation accuracy: ±(0.5+ 1×10-6×D) m
    Electrification parametersBatteryRemovable 14000mAh lithium battery, support base station 12+ hours battery life
    External power supplyThe host can be powered by DC power supply, 220V AC power supply, and can directly power the host through the radio (9-24) V DC
    Physical propertiessizeΦ160.54 mm*103 mm
    weight1.73kg
    MaterialMagnesium alloy AZ91D body
    Operating temperature-45℃~+85℃
    storage temperature-55℃~+85℃
    humidity100% non-condensing
    Waterproof and dustproofIP68 level
    Shock vibrationIK08 level
    Anti-dropResistance to free fall of 2 meters
    Data communicationI/O interface1 external UHF antenna interface
    1 seven-pin data port interface, support power supply, differential data output
    1 nano sim card slot
    Built-in esim, free of charge for surveying and mapping for three years at the factory
    Radio stationBuilt-in transceiver, power: up to 5W
    Network moduleSupport 4G full Netcom
    Wi-Fi802.11 b/g/n
    Blue toothBT 4.0, backward compatible with BT2.x, protocol support Win/Android/IOS system
    NFCSupport NFC flash connection
    Data outputOutput formatNMEA 0183, binary code
    output methodBT/Wi-Fi/RS232/Serial
    Static storagestorage formatDirect recording of HCN, HRC, RINEX, compressed RINEX
    storageStandard 8GB storage, support space protection
    Download methodFTP remote push + local one-click download, HTTP download
    ReceiverSuper twinSupport radio + network two-way data differential at the same time, provide comprehensive data services
    one-button startChinaTest researches and develops data link concurrent communication technology, and the base station is set up immediately
