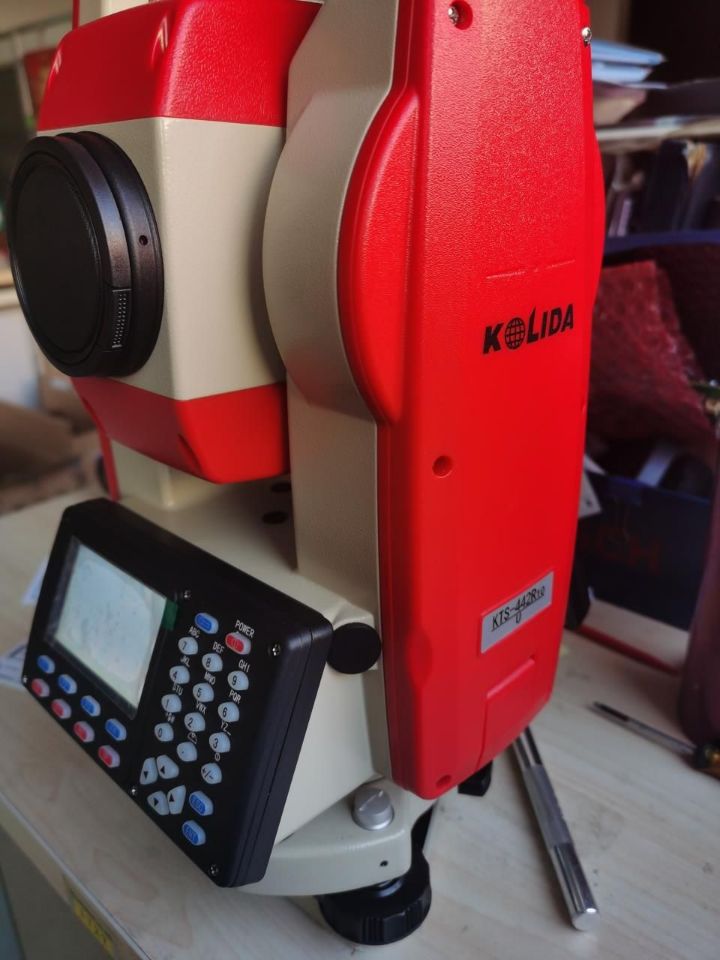

    Total station kolida KTS-442R10U 1000m prismless Total Station

    Ask Lasest Price
    Brand Name : Kolida
    Model Number : Total station kolida KTS-442R10U 1000m prismless
    Certification : CE
    Payment Terms : T/T, Western Union, , MoneyGram
    Supply Ability : 10000 per year
    • Product Details
    • Company Profile

    Total station kolida KTS-442R10U 1000m prismless Total Station

    Total station kolida KTS-442R10U 1000m prismless Total Station



    Total station kolida KTS-442R10U 1000m prismless and with bluetooth and USB port .


    Kolida's new 440 series Total station

    New advanced design with improved technology.


    The new KTS-440 series was designed to deliver the latest technology to surveryor worldwide.

    you will appreciate the technical improvement and advantages from the beginning of working with this equipment


    Featuring an ultra-powerful EDM, the KTS-442R10U is able to measure up to 1000m without reflector at an incredible 3mm+2ppm accuracy. and in prism mode it is able to measure up to 5000m with single prism.


    Measurement are captured faster than ever :0.1s in tracking mode and 0.3s in fine mode. The bright red laser dot pinpoints are also featured.


    Improved Optics system


    442R10U is equipped with a newly-designed objective lens, now it has better tightness to resist adhesion failure, the water proof/ wind proof ability is also greatly increased .


    The new receiving lens provides higher brightness in view field, a bigger signal-receiving area, increased the utilization rate of EDM signal. The measuring accuracy under sunshine/ foggy condition has been greatly improved.


    A new coating technology was applied on Porro prism, now the laser became softer than before, It is safer to surveys' eye.


    Specification:

    KTS-442R10U
    Telescope:
    ImageErect
    Magnification30×
    Effective aperture45mm
    Resolving power3″
    Field of view1°30′
    Minimum focus1.2m
    Tube length154mm
    Angle Measurement
    Measuring methodabsolute encode
    Dia of circle(vertical, horizontal)79mm
    Minimum reading1″ 5″Selectable
    Detection methodHorizontal: Dual .Vertical: Dual
    Accuracy2″
    Distance Measurement: fine weather condition
    Max. Rangesingle prism5km
    Triple prism6km
    Reflectorless1000m
    DisplalyMax:99999999.9999m Min:0.1mm
    Unitm/ft
    AccuracyReflectorless±(3mm+2ppm·D)
    with prism±(2mm+2ppm·D)
    measuring timeFine mode:0.3S;Tracking mode:0.1s
    Atmospheric correctionAuto correction by inputting parameter
    prism constant correctionAuto correction by inputting parameter
    Vial
    Plate vial30″/ 2mm
    Circular vial8′/2mm
    Auto Vertical Compensator
    TypeDual-axis Liquid-electric Detection
    Compensation range±3′
    Accuracy1″
    Optical Plumment
    ImageErect
    Magnification
    Focusing range0.5m~∝
    Laser plummet
    Optional
    On-board Battery
    typeNi-H ,Rechargeable
    VoltageDC 7.4V 3100AH
    charging time3hrs
    Continuous operation time10 hours
    Others
    DisplayLCD, 6 lines
    Data CommunicationUSB,with bluetooth
    Internal memory2M/24000 points
    External memorySD card (up to 2GB)
    Operating temperature-20ºC~+45ºC
    DimensionL190×H350×W190mm,5.6kg
    Dustproof and waterproofIP65

    Quality Total station kolida KTS-442R10U 1000m prismless Total Station for sale
