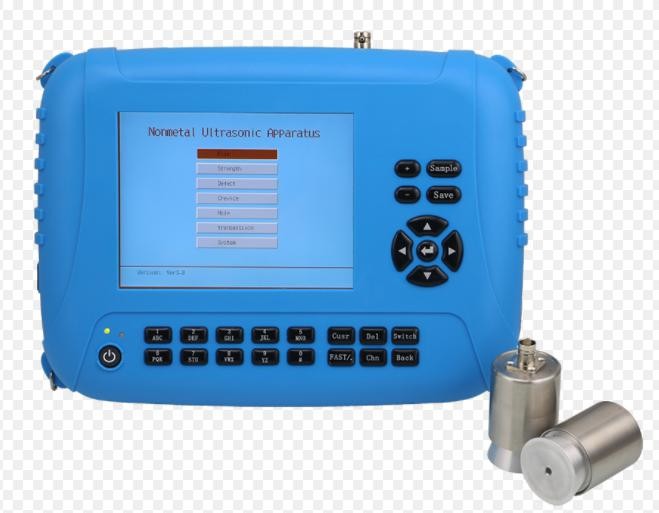

CJ-10 Nonmetal ultrasonic detector
Purpose
☆ Testing of building foundation piles by cross-hole sonic logging；
☆ Inspection of concrete defects by ultrasonic method,such as
uncompacted ,cellular, hole area.
☆ Detecting defects of one hole by one trigger two receive.
☆ Testing dynam performance of geotechnical
investigation,rock,concrete etc.
Specification
☆ Technology code for testing of building foundation piles JGJ 106
—2003
☆ Technical Specification of Dynamic Pile Tests for Highway
Engineering JTG/TF81-01-2004
☆ Technology specification for inspection of concrete defects by
ultrasonic method CECS 21: 2000
☆ Technical specification for geotechnical investigation method
GB50021—2001
Performance
☆ High efficient testing. Lifting speed is more than 60m/s.( 20 cm
distance ).
☆ Display the test data graphically. User can watch analyze result
directly；
☆ Fast and precise Automatic judge the sound parameters. Real-time
wave display to assure test efficiency;
☆ Humanized software design. Software design apply to User and
construction plant. its help information ensure user handle easily；
☆ Linking the rebound apparatus directly. Detecting strength of
concrete by ultrasonic-rebound combine method with linking rebound
apparatus directly,and get strength of concrete in time. The
functions apply for national patent.
☆ Being sensitive to receiving signal. Can receive signal more than
10m in concrete without defects
☆ Can supply smooth power for radial energy transducer needless
external power.
☆ Standard USB storage with big capacity.
☆ Interior lithium battery supply power for apparatus work more
than 6 hours.
☆ Portable, small, light apparatus (1.75Kg).
☆ Extending function for testing thickness of concrete by impacting
echo method.
☆ Professional and powerful analysis software on windows system. It
can export the data to Excel or word for advanced analysis
Technical Data
| Item | Specifications | Item | Specifications |
| Main Control Unit | high-performance Embed Computer | Display | 640×480High brightness TFT Panel |
| Input | Keyboard | storage | 1G(Internal)＋2G(U-Disk) |
| interface | USB | | |
| Receive Channel | One | Max Sample Data length | 64k |
| Trigger Mode | Continuous Trigger, External Trigger | Trigger Voltage(V) | 65,125,250,500,1000 selectable |
| Receive sensitivity | ≤30μv | Amplifier gain | 82dB |
| Amplifier bandwidth | 5KHz～500 kHz | Sample Periods | 0.05μs～6.4μs,8 grades electable |
| Sound time accuracy | 0.05μs | Amplifier resolution | 0.39% |
| Power | Interior lithium battery,work more than 6 hours | Size | 260 mm×185 mm×60 mm |
| External lithium battery,work more than 6 hours(select | Weight | 1.75 kg(include lithium battery) |
| DC 12V | Temperature | -10℃—+40℃ |
| AC 100V~240V,50/60Hz | | |
