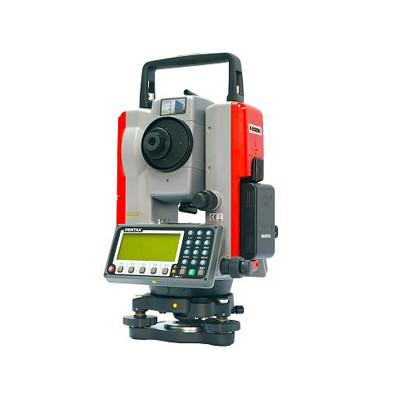

PENTAX R202NE TOTAL STATION

    Buy cheap PENTAX R202NE TOTAL STATION from wholesalers

    Buy cheap PENTAX R202NE TOTAL STATION from wholesalers
    • Buy cheap PENTAX R202NE TOTAL STATION from wholesalers
    • Buy cheap PENTAX R202NE TOTAL STATION from wholesalers
    • Buy cheap PENTAX R202NE TOTAL STATION from wholesalers
    • Buy cheap PENTAX R202NE TOTAL STATION from wholesalers
    • Buy cheap PENTAX R202NE TOTAL STATION from wholesalers

    PENTAX R202NE TOTAL STATION

    Ask Lasest Price
    Brand Name : Pentax
    Model Number : R202NE
    Certification : CE
    Payment Terms : T/T, Western Union, , MoneyGram
    Supply Ability : 10000 per year
    • Product Details
    • Company Profile

    PENTAX R202NE TOTAL STATION

    PENTAX R202NE TOTAL STATION

    PENTAX R202NE TOTAL STATION


    Item specifics


    Place of Origin: Shanghai China (Mainland)

    Brand Name: Pentax

    Model Number: R-202NE

    accuracy: 2"

    color: white and red


    Instrument typeR-202NER-202NE(POWER)
    Telescopeobject diameter45mm( EDM 45mm)
    magnification30 ×
    field view1°30
    resolving power3 "
    minimum focus1.0m (manual focus)
    Distance measurementRange miniprism1.5m-800m(1000m)
    Range 1 prism2,200m
    Ramge 3 prism3,000m
    Range prismless270m350m
    Accuracy with prism±(2mm+2ppm×D)
    Accuracy prismless±(3mm+2ppm×D)
    Measure timeRegular measuremetn2.0seconds(normal),1.2 seconds(quick)
    Raw measure modeTracking measurement0.4seconds
    Angle measurmentaccuracy2 "
    Measure methodAbsolute encode
    Minimum read1"/5 "
    DisplayDisplayDual side (numberic)
    Tilt correctionTypeSingle axis
    Range±3
    Laser plummetInvisible laser
    Accuracy ±1.0mm(the height of the instrument 1.5m)
    Focus range0.5~∞
    Field of view3°30
    Working conditionAnti-water and dustIP54
    temperature-20°C~+50°C
    powerInternal batteriesBP02C
    chargerSTD-C03
    Continuouse measure time8 hours
    Other factorsdemension343H×172W×177L
    weight (with batteires5.4kg
    Communication connectorRS-232C
    programprogram<PowerTopo Lite>
    Memeriy capacity20,000 point
    Road softwarepositive
