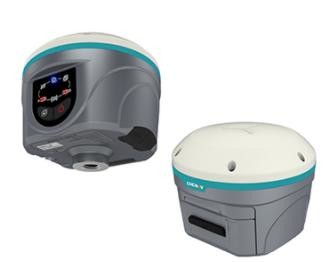

CHC RTK GPS Rtk GPS Chc T3 Rtk Gnss GPS

    Buy cheap CHC RTK GPS Rtk GPS Chc T3 Rtk Gnss GPS from wholesalers

    Buy cheap CHC RTK GPS Rtk GPS Chc T3 Rtk Gnss GPS from wholesalers
    • Buy cheap CHC RTK GPS Rtk GPS Chc T3 Rtk Gnss GPS from wholesalers
    • Buy cheap CHC RTK GPS Rtk GPS Chc T3 Rtk Gnss GPS from wholesalers
    • Buy cheap CHC RTK GPS Rtk GPS Chc T3 Rtk Gnss GPS from wholesalers
    • Buy cheap CHC RTK GPS Rtk GPS Chc T3 Rtk Gnss GPS from wholesalers

    CHC RTK GPS Rtk GPS Chc T3 Rtk Gnss GPS

    Ask Lasest Price
    Brand Name : CHC
    Model Number : T3
    Certification : CE
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 1000 per year
    • Product Details
    • Company Profile

    CHC RTK GPS Rtk GPS Chc T3 Rtk Gnss GPS

    CHC GPS T3 engineering Type RTK GPS

    CHC RTK GPS Rtk GPS Chc T3 Rtk Gnss GPS

    CHC RTK GPS Rtk GPS Chc T3 Rtk Gnss GPS


    Receiver characteristicSatellite trackingSupport beidou full constellation, support single system positioning
    576 channel
    The operating systemLINUX system
    Initialization time5s①

    Initial reliability

    >99.99%
    The operating systemLINUX system
    Receiver appearanceappearanceStreamlined cylinder
    The keys1 power button, 1 dynamic/static switch key
    Indicator lightOne satellite light, one differential signal light, one static data acquisition light, one wi-fi light, and two power lights
    Nominal accuracy (2)The static accuracyPlane accuracy: ±(2.5+ 0.5×10-6×D) mm
    Elevation accuracy: ±(5+0.5×10-6×D) mm
    Precision of RTKPlane accuracy: ±(8 + 1×10-6×D) mm
    Elevation accuracy: ±(5+0.5×10-6×D) mm
    Single GPS precision1.5m
    Code difference accuracyPlane accuracy: ±(0.25+ 1×10-6×D) m
    Elevation accuracy: ±(0.5+ 1×10-6×D) m
    Electrification parameterBatteryRemovable dual battery design, power 6800mAh
    External PowerThe main engine can be powered by dc power supply, 220V ac power supply, and direct power supply to the main engine through the radio. External power supply (9-36)V DC
    Physical propertiesSizeΦ 14.2cm×12.0cm
    Weight1.29kg
    MaterialsThe body is designed with magnesium alloy, and AZ91D is used as magnesium alloy material
    Working temperature-45℃~+75℃
    Storage temperature-55℃~+85℃
    humidity100% no condensation
    Waterproof and dustproofIP68
    The impact vibrationIK08 level
    Fall preventionResistance to 2 m free fall
    Data communicationsThe I/O interface1 external UHF antenna interface
    1 mini USB interface, support USB data download, USB disk upgrade function
    1 seven-pin data port supports power supply and differential data output
    1 Micro SIM slot
    Radio

    Built-in integrated transceiver radio, power: 0.1w ~ 2W, 126 channels adjustable;


    External 30W high-power transmitter, supporting 50 communication channels;


    Agreement: China test agreement

    Network module (4)Support mobile GSM/ td-scdma/tdd-lte, unicom GSM/WCDMA/ tdd-lte/fdd-lte, telecom tdd-lte/fdd-lte three network systems, all three operators can support.
    Wi-Fi802.11b /g/n, with wi-fi hotspot function
    bluetoothBT 4.0, downward compatible with bt2.x, the protocol supports Win/Android/IOS systems
    Data outputThe output formatNMEA 0183 binary code
    Output wayBT/wi-fi/RS232 / radio
    Static storageStorage formatIt can directly record HCN, HRC, RINEX and compress RINEX
    The storage spaceStandard 8GB storage, support space protection, external usb drive storage
    multithreadingMultithreaded storage, each thread can independently set the site name, sampling interval, recording time, data format
    Quality CHC RTK GPS Rtk GPS Chc T3 Rtk Gnss GPS for sale
