ComNav G200 GNSS GPS RECEIVER

Ask Lasest Price
Brand Name :	ComNav
Model Number :	G200
Certification :	CE
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	1000 per year

Add to Cart

Product Details
Company Profile

ComNav G200 GNSS GPS RECEIVER

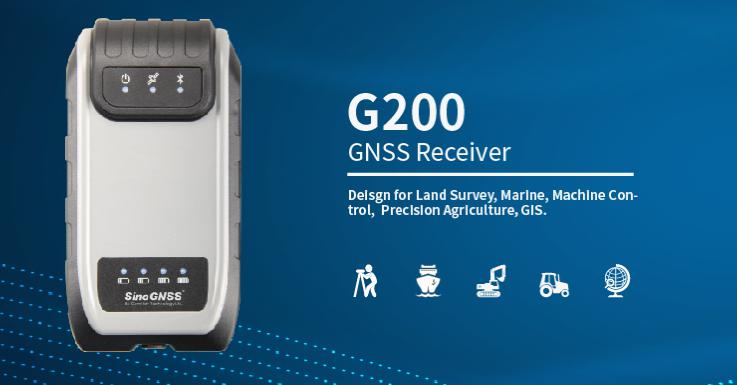

G200 GNSS RECEIVER

The G200 is able to delivery robust survey workflows with SinoGNSS Android-based Survey Master Software, so that you collect quality high-accuracy positions no matter what mobile device you use. No heavy, expensive data collectors required and no compromise with quality but at an affordable price for every surveyor.

Features

GPS L1/L2, BeiDou B1/B2, GLONASS L1/L2, Galileo E1/E5b, QZSS
High-accuracy Positioning
Ideal for RTK Solution
Compact, Rugged Design
Multiple Data Collection Device Choices via Bluetooth Connection

Multi-constellation tracking	SinoGNSS G200 is a rugged, compact, wearable GNSS receiver tracking GPS L1/L2, BeiDou B1/B2, GLONASS L1/L2, Galileo E1/E5b and QZSS
Ideal for CORS	The G200 is a cost-effective GNSS receiver that provides centimeter accuracy positioning by connecting any running CORS system.
Intuitive workflow	The G200 is able to provide easier survey workflow via Survey Master Wizard function, improving productivity for both beginners and professional surveyors.

Performance
Signal tracking Channels:	352 channels
Satellite tracking:	GPS, BeiDou, GLONASS, Galileo, QZSS, SBAS
RTK Horizontal accuracy:	8 mm + 1 ppm
RTK Vertical accuracy:	15 mm + 1 ppm
Post Processing Horizontal accuracy:	2.5 mm + 1 ppm
Post Processing Vertical accuracy:	5 mm + 1 ppm
Initialization time:	less than 10 s
Physical
Size(W × H):	Φ13.7cm × 7.2cm × 5.04cm
Weight (incl. supplied two batteries):	<0.35 kg
Operating temperature:	-20 °C to + 60 °C
Shock:	Designed to survive a 1.5 m drop onto concrete
Humidity:	100% non-condensing
Waterproof and dustproof:	IP65
Power consumption (3 constellations):	1.6 W
Communications
Serial port:	1 9pin Fischer
Protocol:	Ntrip (software based)
Correction data I/O:	RTCM 2.X, 3.X, CMR (GPS only), CMR+ (GPS only)
Position data output rates:	1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz
Bluetooth^® :	V4.0 compatible with Android and WindowsTM mobile OS
