ComNav M600 GNSS Receiver

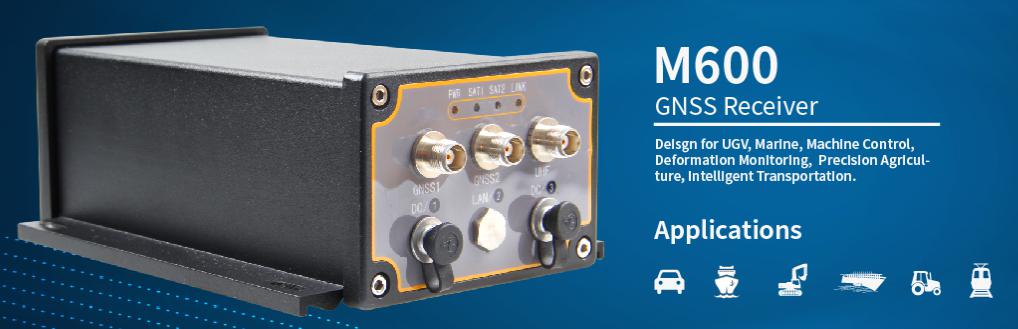

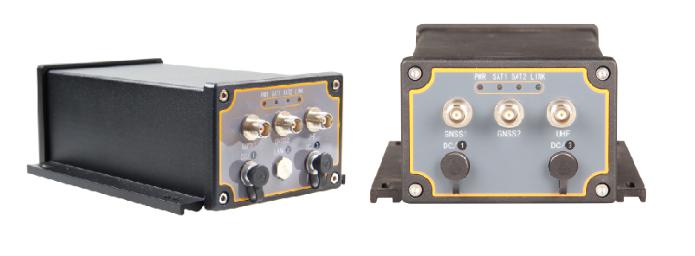

M600 GNSS Receiver

The M600 GNSS receiver is able to deliver robust heading and positioning, with its rugged design and ease of integration, it is designed to deliver centimeter-accuracy positioning and high-accuracy heading to a wide range of mobile applications.

Features

GPS L1/L2, BeiDou B1/B2, GLONASS L1/L2

Dual-antenna design for heading and positioning

DP-Filter Smooth Function

Support PPS and Event Marker

Advanced QUANTUM Technology

Overvoltage protection

Solution for Mobile Applications

Multi-constellation tracking	The M600 tracks 404 channels with all working and planned GNSS constellations including GPS, GLONASS, BeiDou and SBAS.
Easy to Integrate	With its T-type structure, you are flexible to integrate more modular based on your requirement, such as all kind of K-serials OEM Boards, UHF and Ethernet.
Dual-antenna Design	With dual-antenna input design, observation from both antennas are transferred to the processor where multi-constellation RTK are computed.

Performance
Signal tracking Channels:	404 channels
Satellite tracking:	GPS, BeiDou, GLONASS
RTK Horizontal accuracy:	8mm+1ppm
RTK Vertical accuracy:	15mm+1ppm
Post Processing Horizontal accuracy:	2.5mm+0.5ppm
Post Processing Vertical accuracy:	5mm+0.5ppm
RTK Initialization time:	less than 10s
Physical
Size (L × W × H):	200 mm × 145 mm × 80 mm
Weight:	1.3KG with internal UHF
Operating temperature:	-40 °C to + 70 °C
Shock:	Designed to survive a 2 m drop onto concrete
Humidity:	95% no condensation
Waterproof and dustproof:	IP67
Power consumption (3 constellations):	3 W
External power input:	10.5-28 VDC
Communications
1 Serial port (7 pin Lemo):	921,600 bps
Correction data I/O:	RTCM 2.X, 3.X, CMR, CMR+
Position data output rates:	1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz
Ethernet (Optional):	Web Server
UHF modem (optional):	Tx/Rx, 410-470 MHz
